VERSO Series rugged vehicle-mount computers

  • Windows operating system
  • XGA LED display in 10″, 12″ and 15″ sizes
  • High-performance Intel© Core™ i3 or i7 processor
  • IP66 rated with Roxtec option on VERSO 12 and VERSO 15
  • JLT PowerTouch™ display on the 10″ and 12″ models
  • Dual-diversity PIFA WLAN antennas
  • Optional integrated mobile broadband modem
  • Designed for outdoor and indoor use
  • High-performance Intel® Core™ i3-7100U processor for demanding applications
  • Standard 8GB configuration of fast, efficient DDR4 memory (optional up to 32GB)
  • Wi-Fi 6E for enhanced security, improved connectivity, and better coverage
  • Windows operating system
  • Docking-free solution – eliminates unnecessary downtime from unreliable cradle connections
  • Virtually unbreakable 10.4″ capacitive touch with JLT PowerTouch™ and sunlight readable display
  • Rugged design for outdoor and indoor usage – IP65-rating
  • Integrated backup battery for uninterrupted operation
  • Optional integrated mobile broadband

Highest computing performance in the harshest environments

The high-performance VERSO Series rugged computers are designed for companies that typically run thick client applications with high demands on computing power as well as the need for reliable, trouble-free operation in challenging environments. These rugged computers are suitable for companies within industry segments such as mining, agriculture, defense, forestry and ports.

Rugged computers with highest performance on the market

The VERSO series delivers the highest performance on the market thanks to a powerful combination of 11th-gen Intel® Core™ i7 processor, disc memory and storage capacity, thereby taking vehicle-mount computing to the next level. Key features include:

  • 11th-gen Intel® Core™ i7-1185GRE (VERSO 12 and 15) or i3-7100U
  • Standard 16GB configuration (up to 32GB) of fast, efficient DDR4 memory (VERSO 12 and 15)
  • Wi-Fi 6E for enhanced security, improved connectivity, and better coverage
  • Future proof – runs Windows 11 or Windows 10
  • Virtually unbreakable capacitive touch with JLT PowerTouch™ on VERSO 10 and 12
  • Sunlight readable display
  • Docking-free solution – eliminates unnecessary downtime from unreliable cradle connections
  • Navis Ready validated, ensuring trouble-free device integration with the Navis N4 TOS environment at the hardware and software level

Built on JLT’s trusted rugged computer platform

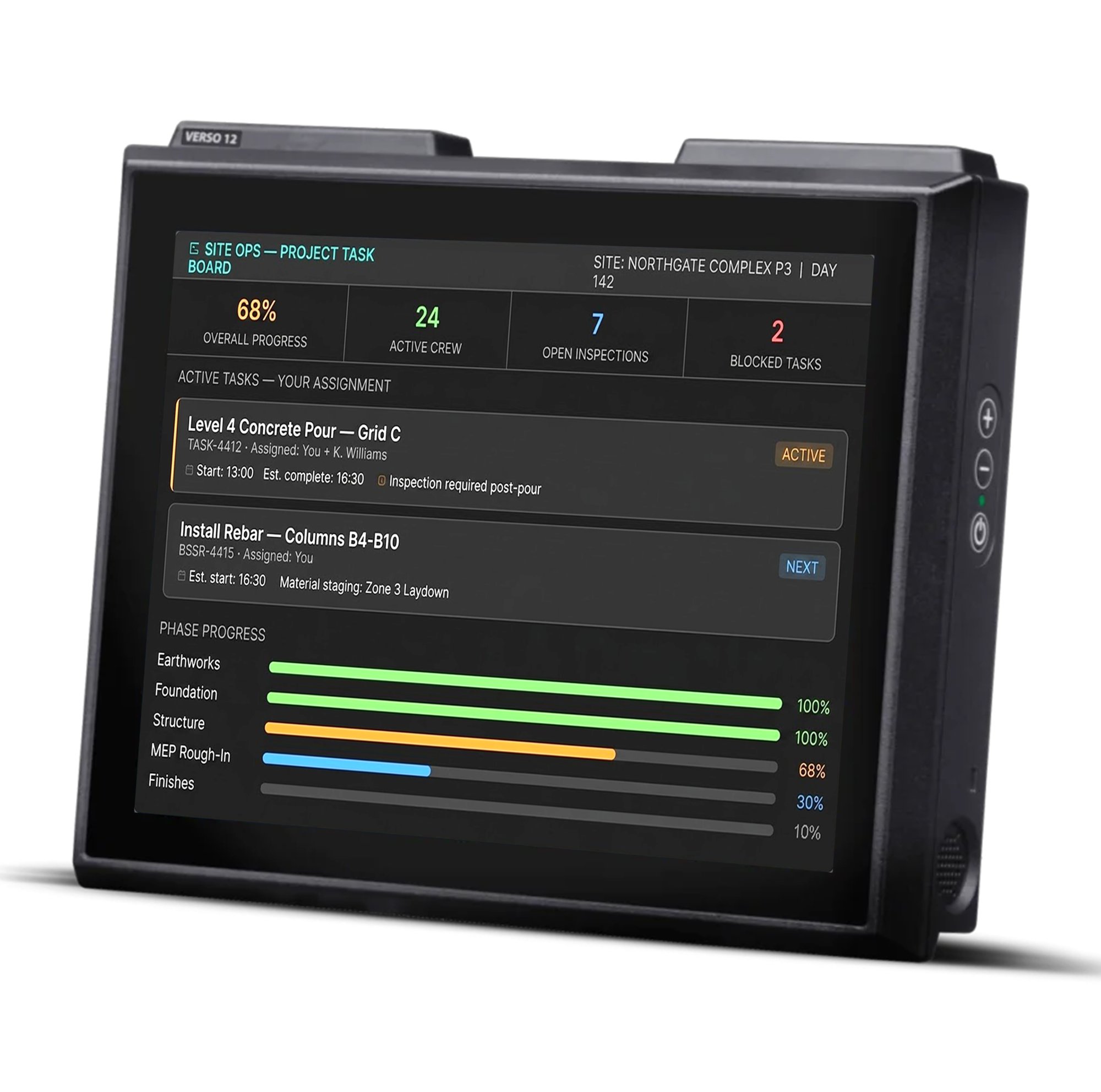

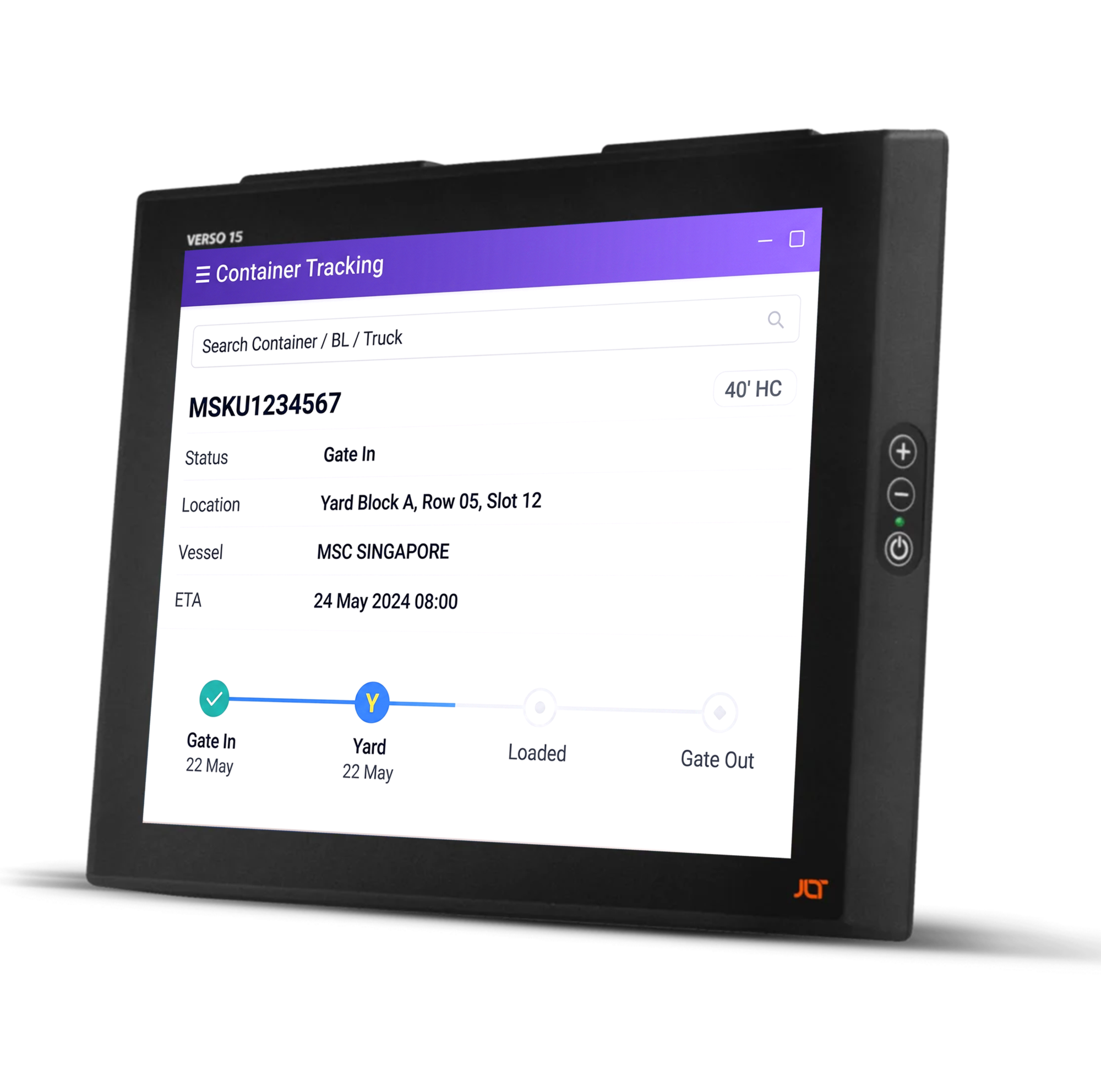

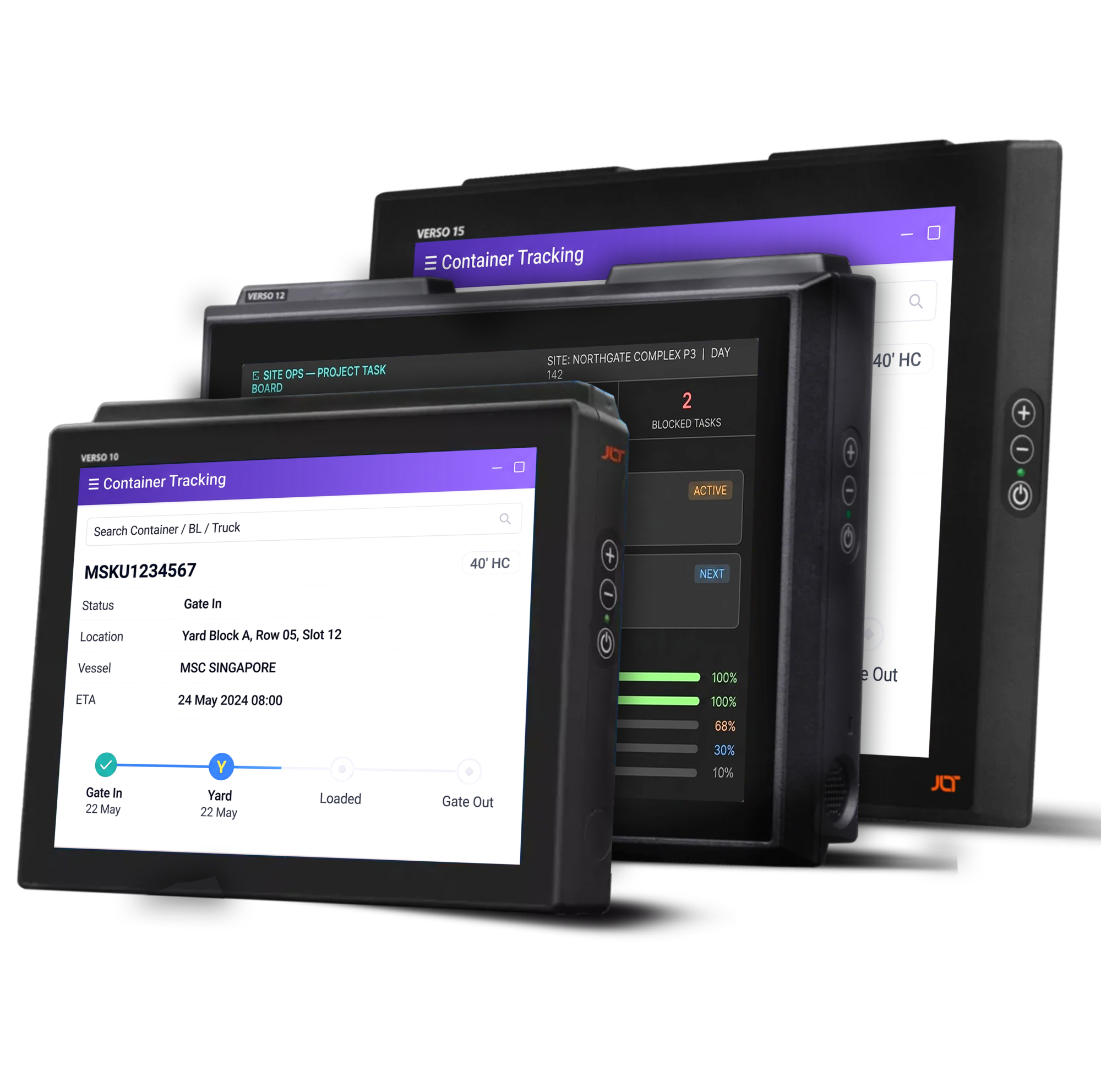

The rugged VERSO series is built on the successful JLT computer platform that has been the base for many delivered computers of various configurations. VERSO is available in 15”, 12” and 10” display models.

Virtually unbreakable touchscreen eliminates the most common point of failure

The virtually unbreakable touchscreen on the 10” and 12” VERSO computers with JLT PowerTouch™ display technology provides the best durability and user experience, while its flush front is simple to keep clean.

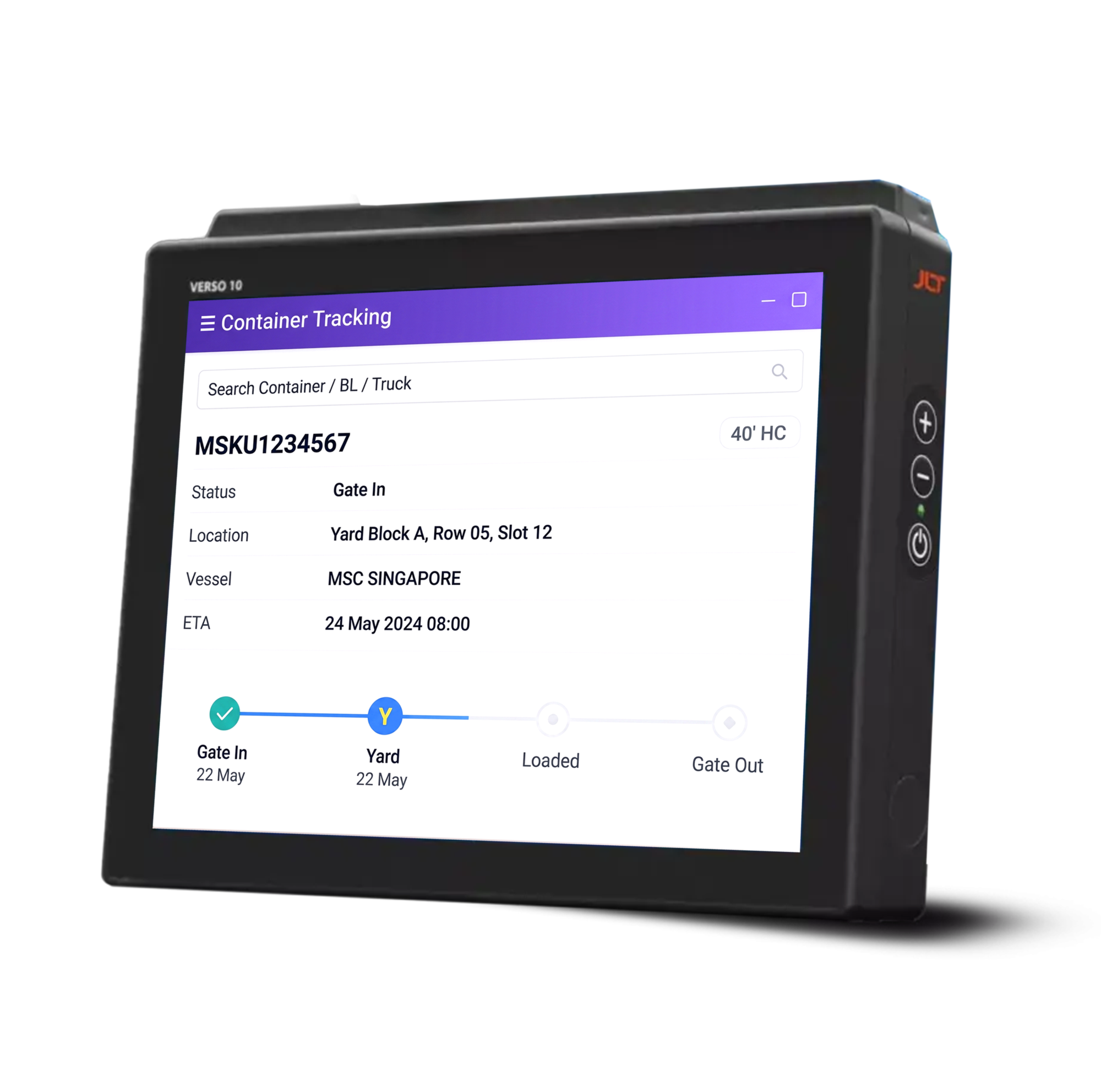

VERSO 10 – the market’s smallest vehicle-mounted rugged computer

Space can be a challenge in industrial vehicles. That’s why we designed the 10” VERSO computers to fit virtually anywhere. They are the smallest rugged vehicle terminals on the market, giving you high performance regardless of space limitations.

Product Highlight

Highest performance – fastest in the industry

VERSO is our most powerful series. Featuring Intel© Core™ i3 or i7 processors, it is the fastest in the industry and runs the most demanding applications with ease

Maximized uptime with JLT's service agreement

Complete peace of mind with JLT:Care™, the no-questions-asked service agreement from JLT

Stable connection over wide areas

With optional external antennas for reliable connectivity even in areas with poor coverage and over wide areas

Product Specifications

Base Unit

PROCESSOR: Intel® Core™ i3-7100U

MEMORY: 8GB DDR4 (max 32GB)

DISPLAY: 10.4″ XGA LED 800NIT
10.4″ XGA LED 400NIT
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass

Storage

SATA: CFast 60GB, 120GB, 240GB

RF Options

RADIO: Dual-band WLAN 802.11 ac, MU-MIMO supported Bluetooth v4.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS: A-GPS/GLONASS/BEIDOU (optional)

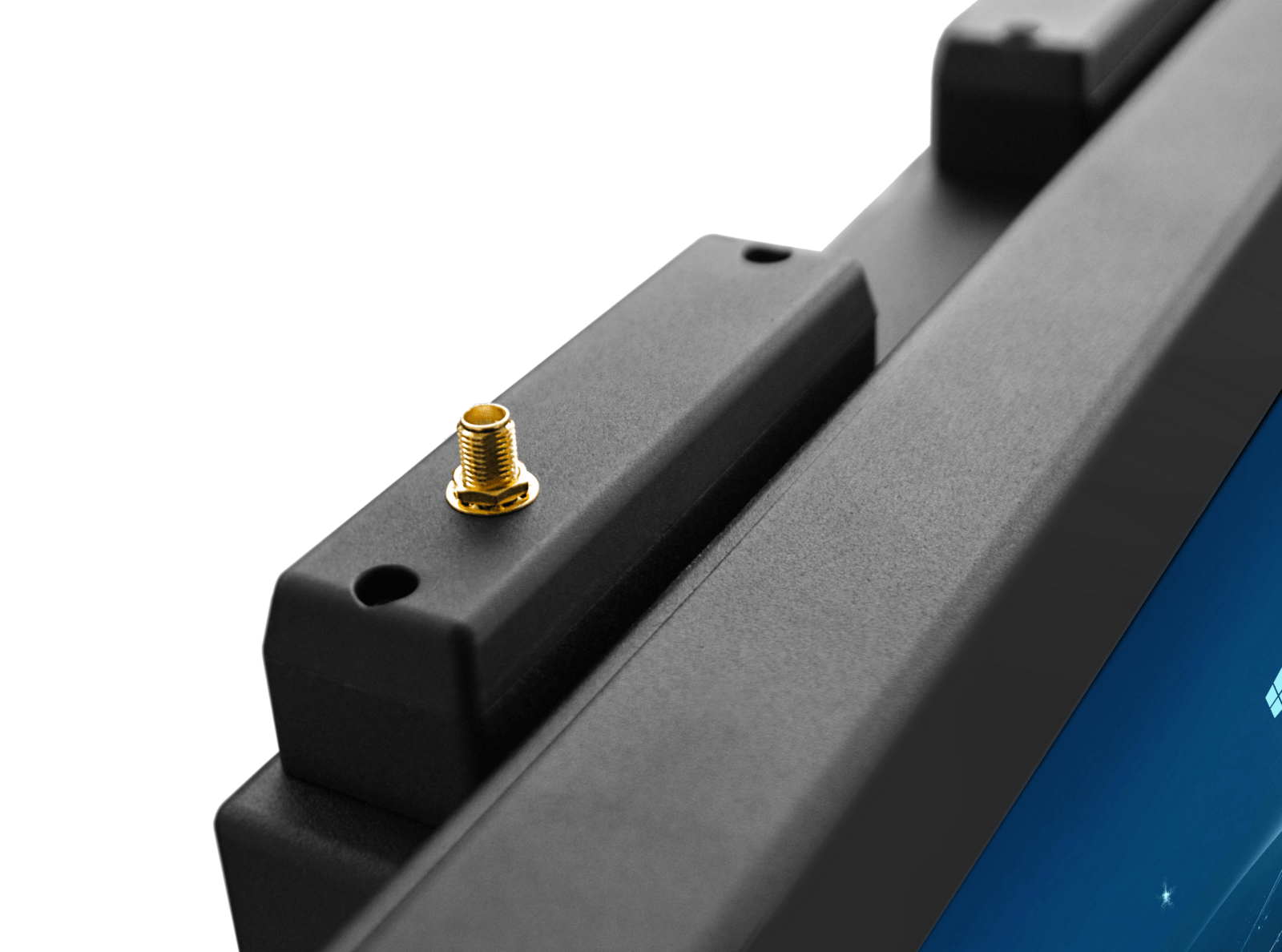

ANTENNAS: WLAN dual diversity antennas (PIFA)
External SMA connectors for 4G and GPS User-configurable external or internal WLAN and Bluetooth antennas

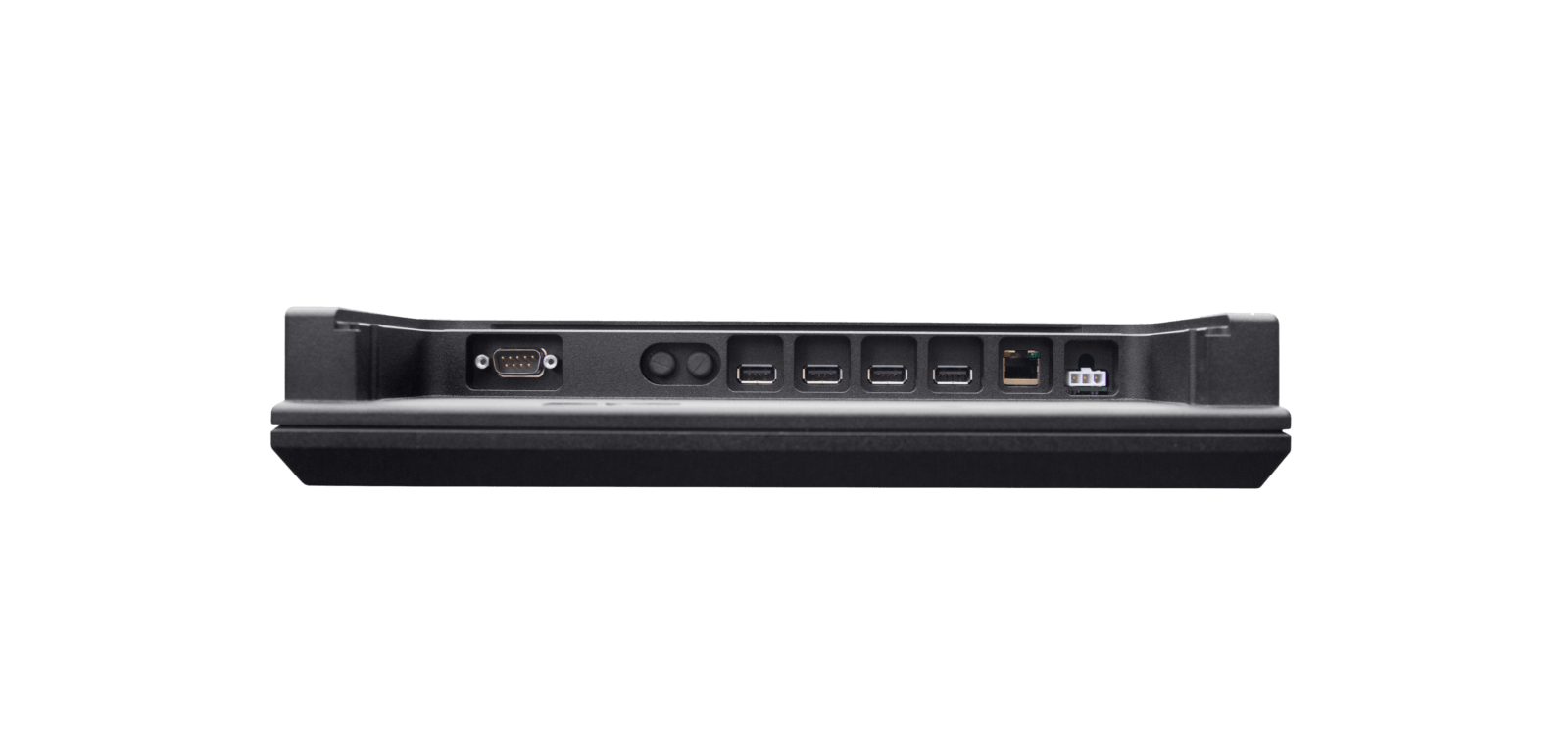

Interfaces

PORTS: 4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

SPEAKERS: Waterproof stereo speakers
HD audio

BUTTONS: Power
LED dimming +/-

Security

TPM: TPM module

Power Supply

INPUT: 9-36 VDC non-isolated

UPS: Internal battery for graceful shut down at unexpected power outages

Operating Systems

WINDOWS: Windows 10 IoT LTSC

Physical Characteristics

Dimensions: 251 mm (w) x 218 mm (h) x 46 mm (d)
9.88 inches (w) x 8.58 inches (h) x 1.81 inches (d)

Weight: 2.2 kg, 4.0 lb

Environment

OPERATING TEMPERATURE: -30°C to 55°C / -22°F to 131°F

STORAGE TEMPERATURE: -35°C to 75°C / -31°F to 167°F

HUMIDITY: 10–95% RH

DUST AND WATER: IP65 – IEC 60529:2001

VIBRATION: 5–500 Hz/0.04 m/s2 XYZ – IEC 60068-2-64 Fh

SHOCK: 30 g for 11 ms XYZ – IEC 60068-2-27

MIL-SPEC: 810G in applicable areas

Base Unit

Processor:

Intel® CoreTM i3-7100U
Intel® CoreTM i7-7600U
Intel® E3845

Memory:

8GB DDR3 (CoreTM i3 or i7)
4GB DDR3 (E3845)

Display:

10.4” XGA LED 800NIT
10.4” XGA LED 400NIT

Capacitive touch screen with JLT PowerTouchTM technology and hardened glass

Interfaces

Ports:

4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

Speakers:

Waterproof stereo speakers
HD audio

Buttons:

Power
LED dimming +/-

Sensors

Input:

9-36 VDC unisolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Storage

SATA:

CFast 32GB, 64GB, 128GB, 256GB

Physical Characteristics

Dimensions:

Logistics dock
251 mm (w) x 207 mm (h) x 48 mm (d) including dock 9.88 inch (w) x 8.15 inch (h) x 1.89 inch (d) including dock

Heavy duty dock
251 mm (w) x 207 mm (h) x 65 mm (d) including dock 9.88 inch (w) x 8.15 inch (h) x 2.56 inch (d) including dock

Weight:

2.7kg, 4.96 LB

Installation:

QuickLock, flexible mount/dismount

RF Options

Radio:

Dualband WLAN 802.11 ac, MU-MIMO supported
Bluetooth v4.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

A-GPS/GLONASS/BEIDOU in dock (optional)

Antennas:

WLAN dual diversity antennas (PIFA)
External SMA connectors for 4G and GPS
User configurable external or internal WLAN and Bluetooth antennas

Security

TPM module (i3 or i7 only)

Operating Systems

Windows:

Windows 10 IoT
Windows Embedded Standard 7 (E3845 only)
Windows 7 (E3845 only)
