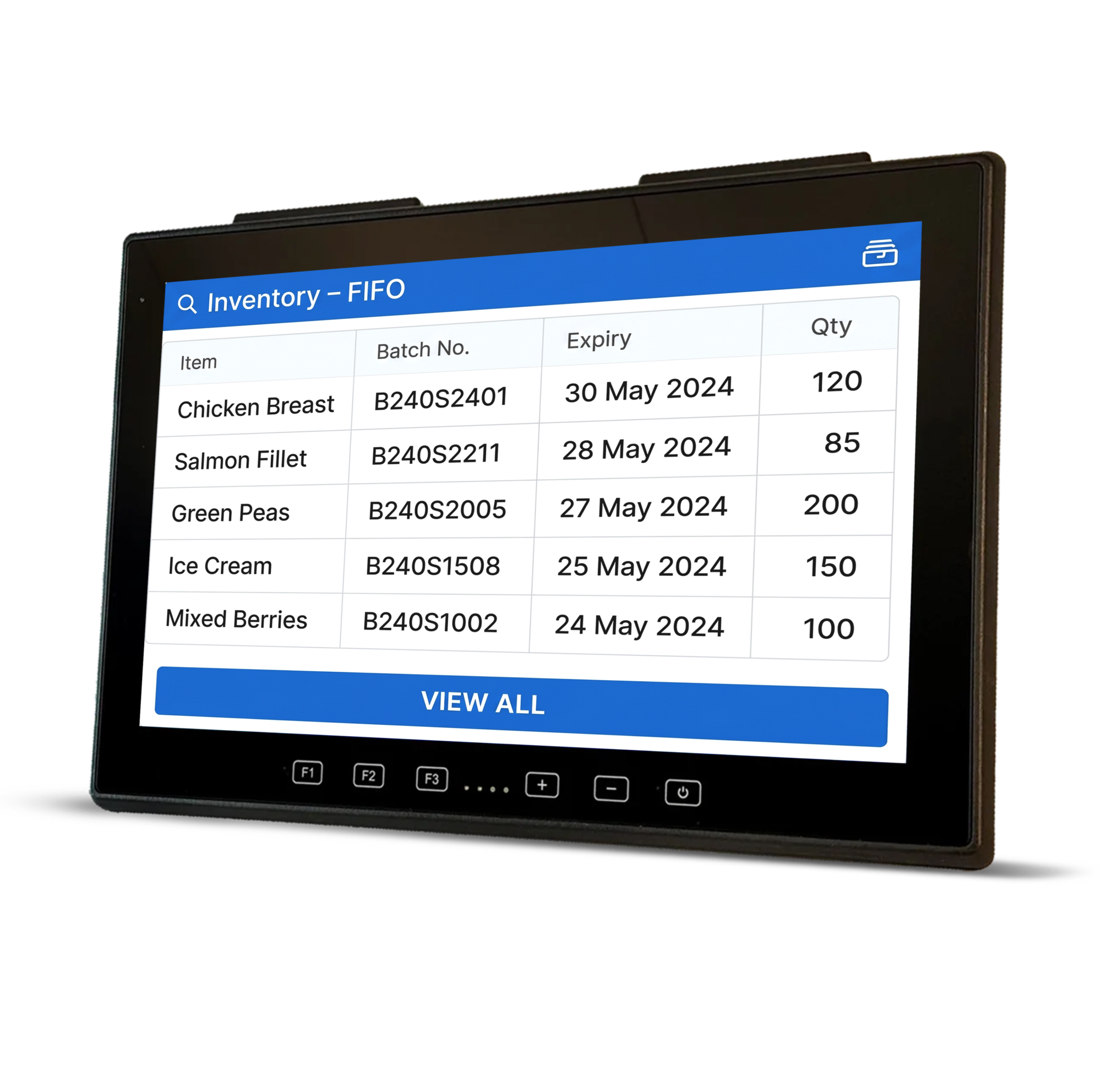

JLT6015 15.6” Full-HD vehicle-mount computer

  • Large Full HD 15” 1920 x 1080 LED 1000 NIT Display
  • Optional WWAN 5G (Europe) or 4G
  • Multi touch display – efficient tasks handling like a smartphone or a tablet – two fingers zoom, pinch or swipe
  • Future proof – runs Windows10 or Windows 11 IoT Enterprise LTSC with security updates until 2034
  • Wi-Fi 6E for enhanced security, best connectivity, and excellent coverage
  • Carrier-grade 5G encryption and TPM module
  • One-piece, trouble-free, docking-free design
  • Integrated wide-range 9-72 VDC isolated power supply
  • Easily accessible programmable function buttons
  • Swedish quality – from design to production
  • Large Full HD 15” 1920 x 1080 LED 1000 NIT Display
  • Optional WWAN 5G (Europe) or 4G
  • Multi touch display – efficient tasks handling like a smartphone or a tablet – two fingers zoom, pinch or swipe
  • Future proof – runs Windows10 or Windows 11 IoT Enterprise LTSC with security updates until 2034
  • Wi-Fi 6E for enhanced security, best connectivity, and excellent coverage
  • Carrier-grade 5G encryption and TPM module
  • One-piece, trouble-free, docking-free design
  • Integrated wide-range 9-72 VDC isolated power supply
  • Easily accessible programmable function buttons
  • Swedish quality – from design to production
Request a quote

Superior FHD display resolution with widescreen enables efficient multitasking

The rugged JLT6015 vehicle-mounted computer is the first of its kind on the market, featuring a 15” full high definition (FHD) display resolution of 1920 x 1080 pixels with a widescreen aspect ratio (16:9). The JLT6015 computer is ideal for mining, agriculture, sawmills, container terminals, and other industries where clear and detailed graphics, visuals, and videos impact daily operations and logistics.

Improve operational productivity with the latest Windows OS, 5G and security

The JLT6015 operating system (OS) has split-screen capability, allowing users to simultaneously view detailed, multiple data and video streams, such as equipment diagnostics, detailed navigation, or terrain maps. This enables accurate data interpretation and precise monitoring and control. With multi-touch display functionality, users can easily multitask and make full use of the latest software applications.

The JLT6015 computer is certified for carrier-grade 5G for Europe and features the latest security and encryption protocols and a Trusted Platform Module (TPM) to safeguard sensitive data. Furthermore, the JLT6015 computer is equipped with Wi-Fi 6E and is compatible with Windows 11 IoT Enterprise Long-Term Servicing Channel (LTSC).

Rugged and built for tough environments

Designed to be ultra-rugged, shock and vibration-proof, and weather-resistant, the JLT6015 computer is engineered as a single, trouble-free, docking-free unit. Built with a touchscreen that is operable with gloves, it provides sunlight readability with brightness levels up to 1000 NIT. The computer’s compact design fits into tight spaces, such as vehicle cabins.

Product Highlight

Brilliant 15” FHD widescreen

15” FHD resolution with widescreen format enables large quantity of real time data, text, and video, with superior clarity and sharpness

Compact, ruggedized design

The shock and vibration-resistant design fits into compact spaces, withstands harsh weather conditions, and remains reliable and secure in challenging environments

Dock-free solution maximizes uptime

The one-piece non-docking solution is hassle-free and minimizes unnecessary downtime from unreliable cradle connections

Product Specifications

Base Unit

Processor:

Intel® x6413E

Memory:

8GB On-board
Display:

15.6” FHD 1920 x 1080 LED 1000 NIT
15.6” FHD 1920 x 1080 LED 500 NITCapacitive touch screen with JLT PowerTouch™ technology and hardened glass
Light sensors for adjustable auto-dimming

Storage

SATA:

M.2 60GB, 120GB, 240GB, 480GB

RF Options

Radio:

Dualband WLAN 802.11ax, 802.11a/b/g/n/ac
Bluetooth v5.2Optional
4G (LTE)
5G (NR)

Antennas:

WLAN dual diversity antennas (PIFA)
External WLAN and Bluetooth antennas (optional)

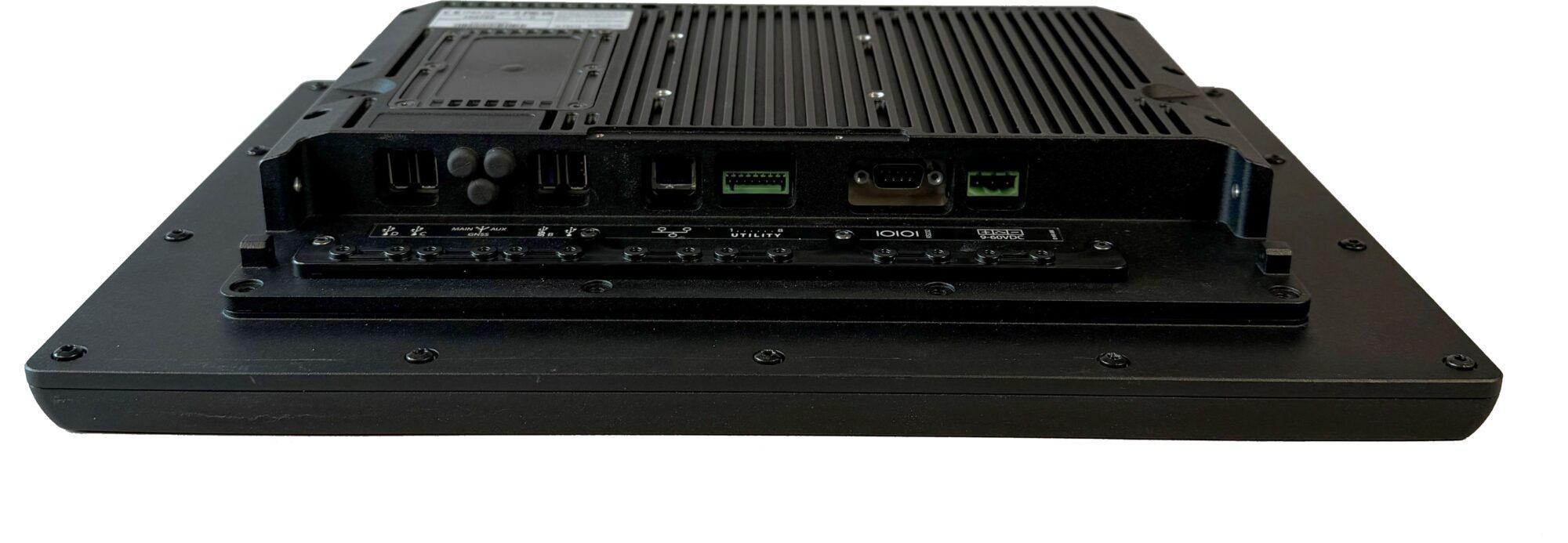

Interfaces

Ports:

1x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with customer configurable 5V or 12V
I/O Port

Speakers:

Waterproof speakers
HD audio

Buttons:

6x Capacitive touch buttons
Power
LED dimming +/-
3x Configurable

LED indicators:

Power status
Disc activity and Wi-Fi connection

Security

TPM module

Power Supply

Input:

9-72 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages
900 mAh STD or 1800 mAh Performance (optional)

Power consumption:

High Bright: 40 W (max 50 W, stand by/off mode 0.4 W)
STD Bright: 30 W (max 45 W, stand by/off mode 0.4 W)

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT Enterprise LTSC

Physical Characteristics

Dimensions:

405mm (w) x 265mm (h) x 58.2mm (d)
16” (w) x 10.4” (h) x 2.3” (d)

Weight:

4.6 kg / 10.1 LB

Environment

Operating temperatures:

-30° C to 55° C / -22° F to 131° F

Storage temperatures:

-35° C to 75° C / -31° F to 167° F

Humidity:

10–95% RH

Dust and water:

IP65 – IEC 60529:2001

Vibration:

IEC 60068-2-64 Fh
5 – 200 Hz, 5.0 (m/s2)2 / Hz
200 – 500 Hz, 3,85 (m/s2)2 / Hz
XYZ 3H for each direction

Shock:

IEC 60068-2-27
30g for 11ms XYZ 3 times, positive and negative

MIL-SPEC:

810G in applicable areas

Base Unit

Processor:

Intel® x6413E

Memory:

8GB On-board
Display:

15.6” FHD 1920 x 1080 LED 1000 NIT
15.6” FHD 1920 x 1080 LED 500 NITCapacitive touch screen with JLT PowerTouch™ technology and hardened glass
Light sensors for adjustable auto-dimming

Interfaces

Ports:

1x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with customer configurable 5V or 12V
I/O Port

Speakers:

Waterproof speakers
HD audio

Buttons:

6x Capacitive touch buttons
Power
LED dimming +/-
3x Configurable

LED indicators:

Power status
Disc activity and Wi-Fi connection

Storage

SATA:

M.2 60GB, 120GB, 240GB, 480GB

Power Supply

Input:

9-72 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages
900 mAh STD or 1800 mAh Performance (optional)

Power consumption:

High Bright: 40 W (max 50 W, stand by/off mode 0.4 W)
STD Bright: 30 W (max 45 W, stand by/off mode 0.4 W)

Physical Characteristics

Dimensions:

405mm (w) x 265mm (h) x 58.2mm (d)
16” (w) x 10.4” (h) x 2.3” (d)

Weight:

4.6 kg / 10.1 LB

RF Options

Radio:

Dualband WLAN 802.11ax, 802.11a/b/g/n/ac
Bluetooth v5.2Optional
4G (LTE)
5G (NR)

Antennas:

WLAN dual diversity antennas (PIFA)
External WLAN and Bluetooth antennas (optional)

Security

TPM module

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT Enterprise LTSC
