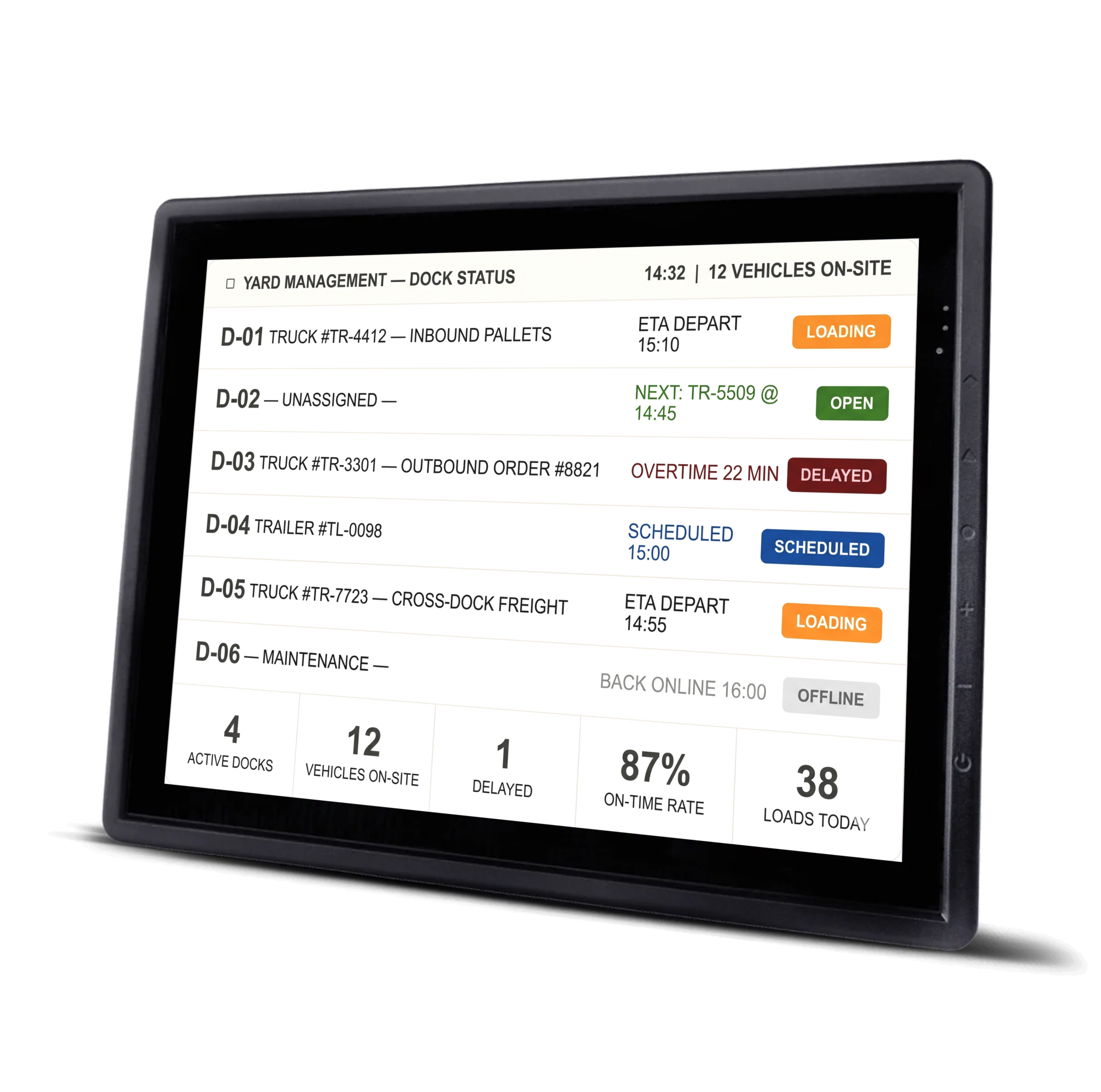

JLT6012 12″ rugged vehicle-mount computer

  • 12” capacitive touch with JLT PowerTouch™
  • Intel® x6413E processor
  • Future proof – runs Windows 11 or Windows 10
  • IP65 waterproof and dustproof
  • Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity IFA WLAN antennas
  • Easily accessible programmable function buttons
  • Integrated wide-range 9-72 VDC isolated power supply
  • Optional WWAN (4G or 5G)
  • Wi-Fi 6E
  • 12” capacitive touch with JLT PowerTouch™
  • Intel® x6413E processor
  • Future proof – runs Windows 11 or Windows 10
  • IP65 waterproof and dustproof
  • Virtually unbreakable JLT PowerTouch™ display
  • Dual-diversity IFA WLAN antennas
  • Easily accessible programmable function buttons
  • Integrated wide-range 9-72 VDC isolated power supply
  • Optional WWAN (4G or 5G)
  • Wi-Fi 6E

Easy to integrate new technology

Need a future-proof system that’s as user-friendly as it is smart? Meet the JLT6012™ computer, the first model in our 6th generation of rugged IT devices. We created an innovative architecture that makes it easy to integrate new technology, giving you the flexibility to adapt to changing needs and keep up-to-date with developments.

Outstanding user acceptance and the highest reliability

Productivity has been the number-one priority in every step of our development of the JLT6012 forklift computer. That takes everything into account, from outstanding user acceptance to the highest reliability. This computer can be installed in virtually any vehicle, electrical or combustion powered, without the need for external adapters. State-of-the-art wireless technology ensures reliable connectivity in less-than-optimal conditions. The intuitive touchscreen is simple to use, even when wearing gloves. The screen is virtually unbreakable, overcoming the most common failure point for rugged computers. With the JLT6012 rugged computer onboard, you’re ready for the future of logistics – whatever it brings.

Maximize productivity with JLT Insights

Combined with our software JLT Insights, the JLT6012 forklift computer helps you to maximize productivity by collecting and contextualizing operational data such as forklift positioning, access point functionality and usage as well as giving you an overview of the health of your devices.

Product Highlight

Installation in almost any vehicle without adapters

Integrated wide-range 9-72 VDC isolated power supply enables installation in most vehicle types without external adapters

Data input made easy with optional keyboard

Two keyboard options are available – customizable on-screen versions or external standard keyboards

Virtually unbreakable display

JLT PowerTouch™ display technology has outstanding resistance to wear and tear

Product Specifications

Base Unit

Processor:

Intel® E3845

Memory:

4GB On-board

Display:

12.1” XGA LED 1000 NIT
12.1” XGA LED 500 NIT

Capacitive touch screen with JLT PowerTouchTM technology and hardened glass
Light sensors for adjustable auto-dimming

Storage

SATA:

M.2 32GB, 64GB, 128GB, 256GB

RF Options

Radio:

Dualband WLAN 802.11 ac, 802.11 a/b/g/n
Bluetooth v4.2 + BLE
RFID for login

Antennas:

WLAN dual diversity antennas (IFA)
User configurable external or internal WLAN and Bluetooth antennas



Interfaces

Ports:

1x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with customer configurable 5V or 12V I/O Port

Speakers:

Encapsulated audio exciters
HD audio

Buttons:

6x Capacitive touch buttons
Power
LED dimming +/-
3x Configurable

LED indicators:

Power status
Disc activity and Wi-Fi connection

Security

TPM module

Power Supply

Input:
9-60 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Power consumption:

20 W* (max 40 W, stand by/off mode 0.4 W)

Operating Systems

Windows:

Windows 10 IoT LTSC

Android:

Android 8.1 Oreo

Physical Characteristics

Dimensions:

292mm (w) x 231mm (h) x 50mm (d)
11.5 inch (w) x 9.1 inch (h) x 2 inch (d)

Weight:

2.85 kg, 6.45 LB

Environment

Operating temperatures:

-30° C to 55° C / -22° F to 131° F

Storage temperatures:

-35° C to 75° C / -31° F to 167° F

Humidity:

10–95% RH

Dust and water:

IP65 – IEC 60529:2001

Vibration:

5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh

Shock:

30g for 11ms XYZ – IEC 60068-2-27

MIL-SPEC:

810G in applicable areas

Base Unit

Processor:

Intel® E3845

Memory:

4GB On-board

Display:

12.1” XGA LED 1000 NIT
12.1” XGA LED 500 NIT

Capacitive touch screen with JLT PowerTouchTM technology and hardened glass
Light sensors for adjustable auto-dimming

Interfaces

Ports:

1x USB 3.0
3x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with customer configurable 5V or 12V I/O Port

Speakers:

Encapsulated audio exciters
HD audio

Buttons:

6x Capacitive touch buttons
Power
LED dimming +/-
3x Configurable

LED indicators:

Power status
Disc activity and Wi-Fi connection

Storage

SATA:

M.2 32GB, 64GB, 128GB, 256GB

Power Supply

Input:
9-60 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Power consumption:

20 W* (max 40 W, stand by/off mode 0.4 W)

Physical Characteristics

Dimensions:

292mm (w) x 231mm (h) x 50mm (d)
11.5 inch (w) x 9.1 inch (h) x 2 inch (d)

Weight:

2.85 kg, 6.45 LB

RF Options

Radio:

Dualband WLAN 802.11 ac, 802.11 a/b/g/n
Bluetooth v4.2 + BLE
RFID for login

Antennas:

WLAN dual diversity antennas (IFA)
User configurable external or internal WLAN and Bluetooth antennas



Security

TPM module

Operating Systems

Windows:

Windows 10 IoT LTSC

Android:

Android 8.1 Oreo

Downloads

PDF

Data sheet JLT6012

Download Data Sheet
PDF

Data Sheet JLT:Care EMEA

Download Data Sheet
PDF

JLT Data Sheet JLT:Care Americas

Download Data Sheet

Data sheet JLT6012

Data Sheet JLT:Care EMEA

JLT Data Sheet JLT:Care Americas
