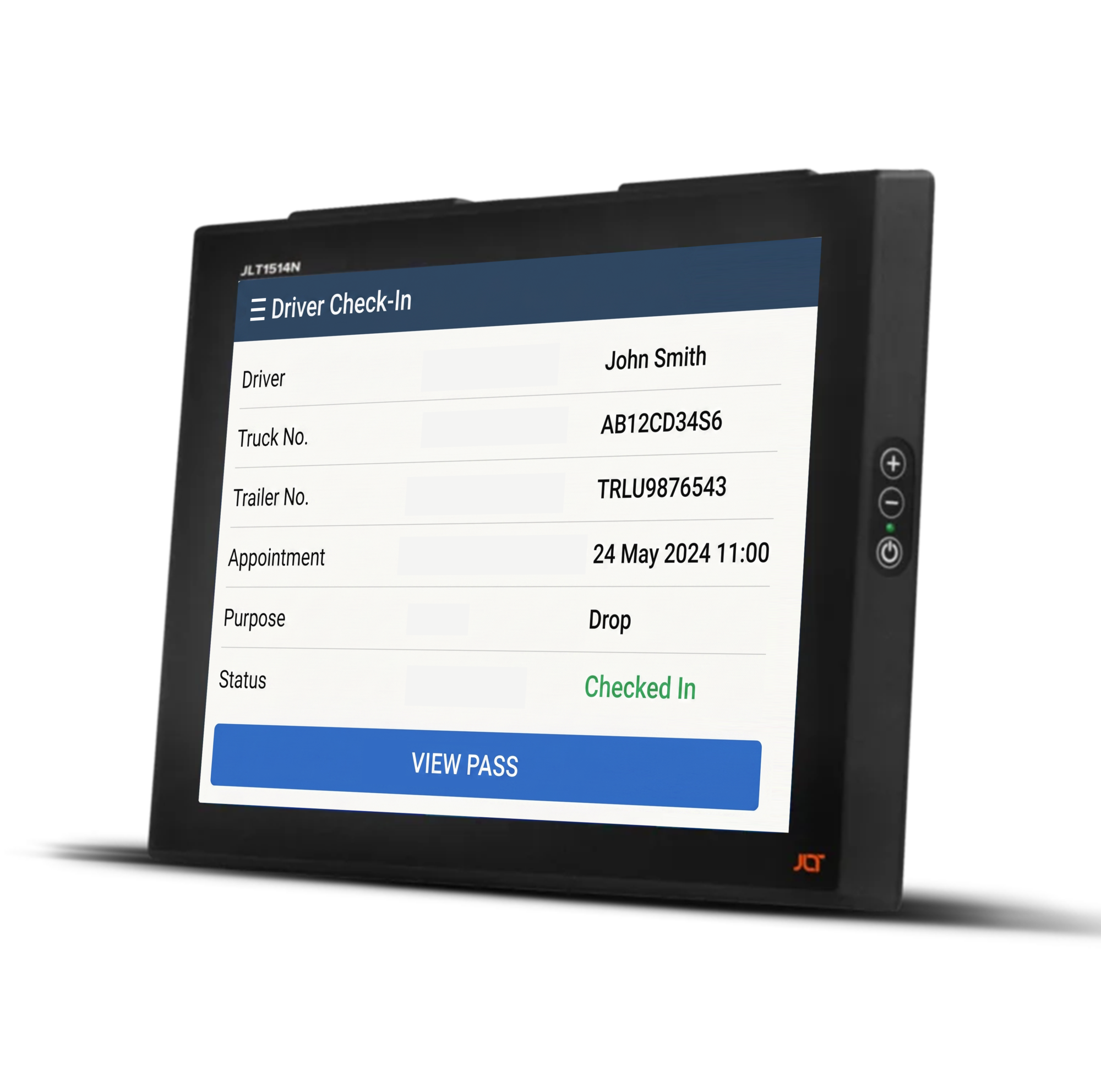

JLT1514N 15″ rugged vehicle-mount computer

  • Intel® x6413E processor
  • IP65 dust and waterproof
  • Future proof – runs Windows 11 or Windows 10
  • Dual-diversity PIFA WLAN antennas
  • Integrated backup battery for uninterrupted operation
  • Optimal sunlight readable display
  • Optional integrated mobile broadband
  • Wi-Fi 6E
  • Intel® x6413E processor
  • IP65 dust and waterproof
  • Future proof – runs Windows 11 or Windows 10
  • Dual-diversity PIFA WLAN antennas
  • Integrated backup battery for uninterrupted operation
  • Optimal sunlight readable display
  • Optional integrated mobile broadband
  • Wi-Fi 6E

The optimal rugged forklift computer

If you’re looking for a reliable computer with a large 15-inch monitor to be used in your warehouse vehicle, port crane, or simply mounted on the wall, take a look at the JLT1514N fixed-mount computer. This rugged forklift computer has been selected by thousands of customers in the warehousing industry around the world. This rugged computer provides the optimal, most hassle-free solution available for forklifts and other applications in the logistics and warehousing space.

Maximized productivity and stable connectivity

Equipped with an Intel Atom® x6413E processor, standard 8GB DDR4 memory (expandable to 32GB), Wi-Fi 6E technology and Windows 11 support, the JLT1514N ensures optimal performance, stable connectivity even in busy environments, enhanced security and maximized productivity.

Docking-free solution eliminating downtime

With JLT1514N everything comes integrated in the solution, eliminating the need for external adapters or cradles. By removing unreliable cradle connections, it significantly reduces downtime. Plus, you benefit from a complete solution from a single supplier, providing a streamlined point of contact for all your needs.

Power supply options for electrical or combustion-powered vehicles

The JLT1514N can be supplied with an integrated, isolated 18-60 VDC power supply for electrical forklift installations or a non-isolated 9-36 VDC power supply for combustion-powered vehicles.

As with the rest of the JLT logistics computer series, the JLT1514N is constructed from the bottom up for maximum reliability and long life.

Product Highlight

Outstanding value for warehouseing logistics

Smart design with everything built in makes this computer a cost-effective option for logistics applications

Large, easy-to-read 15” display

Large 15-inch sunlight readable display with resistive touch for use with gloves and in wet conditions

Maximized uptime with JLT:Care

Complete peace of mind with JLT:Care™, the no-questions-asked service agreement from JLT

Product Specifications

Base Unit

Processor:

Intel® x6413E

Memory:

8GB DDR4 (max 32GB)

Display:

15” XGA LED 800 NIT
15” XGA LED 500 NIT
Resistive 4-wire touch screen

Storage

SATA:

CFast 60GB, 120GB, 240GB

RF Options

Radio:

Dualband WLAN 802.11 ac, Dualband WLAN 802.11ax, 802.11a/b/g/n/ac
MU-MIMO supported
Bluetooth v5.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

A-GPS/GLONASS/BEIDOU (optional)

Antennas:

WLAN dual diversity antennas (PIFA)
User configurable external or internal WLAN and Bluetooth antennas

Interfaces

Ports:
4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

Speakers:

Waterproof stereo speakers
HD audio

Buttons:

Power
LED dimming +/-

Security

TPM module

Power Supply

Input:

9-36 VDC unisolated
18-60 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT LTSC

Physical Characteristics

Dimensions:

370 mm (w) x 305 mm* (h) x 67 mm (d)
14.6 inch (w) x 12 inch* (h) x 2.6 inch (d)
*antenna domes incl.

Weight:

5.3 kg, 11.7 LB

Environment

Operating temp.:

-30° C to 55° C / -22° F to 131° F

Storage temp.:

-35° C to 75° C / -31° F to 167° F

Humidity:

10–95% RH

Connector Sealing:

Roxtec sealing cable protection (optional)

Dust and water:

IP65 – IEC 60529:2001

Vibration:

5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh

Shock:

30g for 11ms XYZ – IEC 60068-2-27

MIL-SPEC:

810G in applicable areas

Base Unit

Processor:

Intel® x6413E

Memory:

8GB DDR4 (max 32GB)

Display:

15” XGA LED 800 NIT
15” XGA LED 500 NIT
Resistive 4-wire touch screen

Interfaces

Ports:
4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

Speakers:

Waterproof stereo speakers
HD audio

Buttons:

Power
LED dimming +/-

Storage

SATA:

CFast 60GB, 120GB, 240GB

Power Supply

Input:

9-36 VDC unisolated
18-60 VDC isolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Physical Characteristics

Dimensions:

370 mm (w) x 305 mm* (h) x 67 mm (d)
14.6 inch (w) x 12 inch* (h) x 2.6 inch (d)
*antenna domes incl.

Weight:

5.3 kg, 11.7 LB

RF Options

Radio:

Dualband WLAN 802.11 ac, Dualband WLAN 802.11ax, 802.11a/b/g/n/ac
MU-MIMO supported
Bluetooth v5.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

A-GPS/GLONASS/BEIDOU (optional)

Antennas:

WLAN dual diversity antennas (PIFA)
User configurable external or internal WLAN and Bluetooth antennas

Security

TPM module

Operating Systems

Windows:

Windows 11 IoT Enterprise LTSC
Windows 10 IoT LTSC

Downloads

PDF

Data sheet JLT1514N

Download Data Sheet
PDF

JLT_Data_Sheet_JLT_Care_EMEA

Download Data Sheet
PDF

JLT_Data_Sheet_JLT_Care_Americas

Download Data Sheet

Data sheet JLT1514N

JLT_Data_Sheet_JLT_Care_EMEA

JLT_Data_Sheet_JLT_Care_Americas
