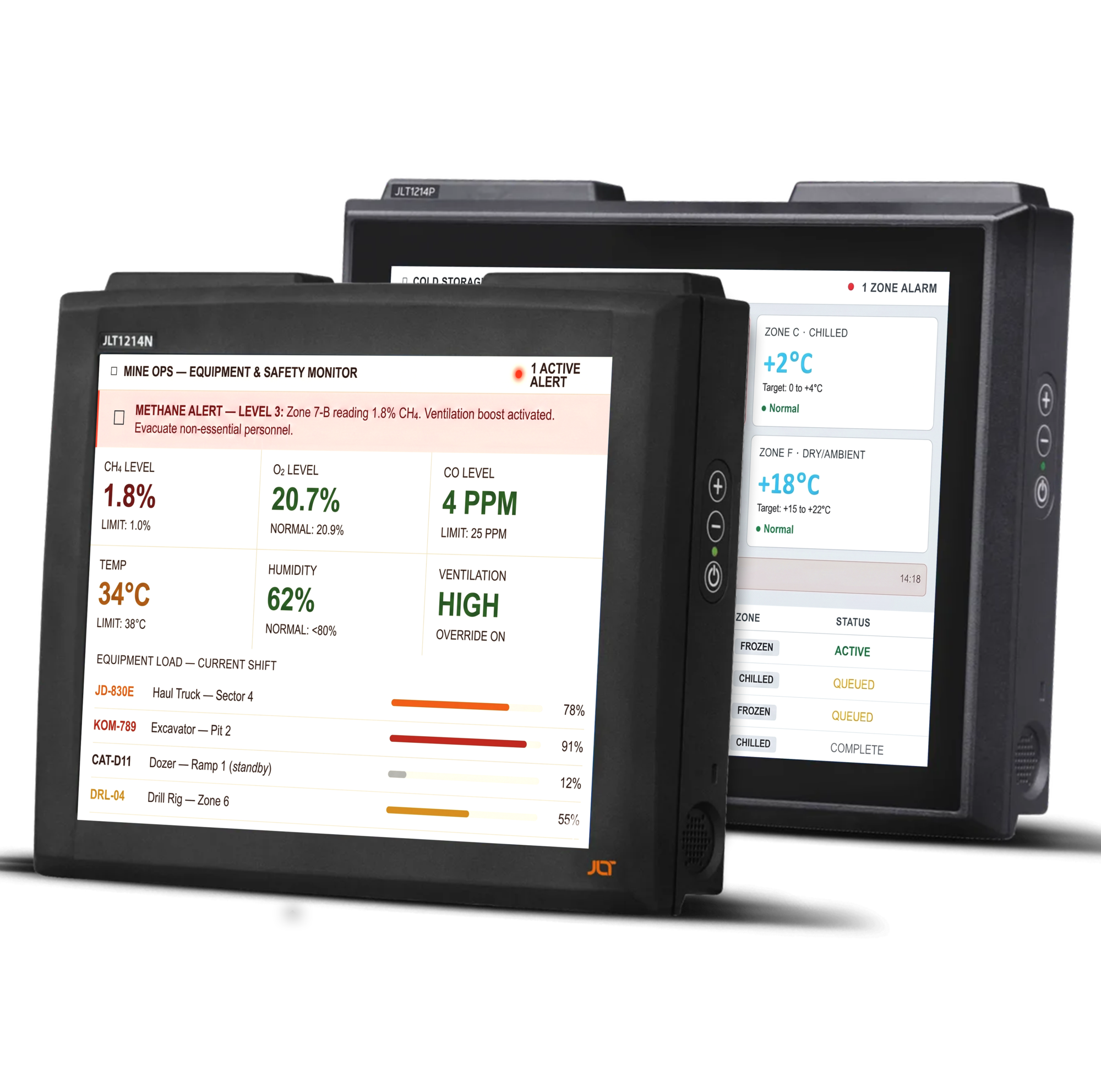

JLT1214P and JLT1214N 12″ rugged vehicle-mount computers

  • Windows operating system
  • 12” XGA LED display with the smallest footprint in its class
  • Intel Atom® x6413E processor
  • IP65 waterproof and dustproof
  • Virtually unbreakable JLT PowerTouch™ display on JLT1214P
  • Dual-diversity PIFA WLAN antennas
  • Optional heated display for extreme temperatures on JLT1214N
  • Integrated DC/DC with UPS battery solution
  • Windows operating system
  • 12” XGA LED display with the smallest footprint in its class
  • Intel Atom® x6413E processor
  • IP65 waterproof and dustproof
  • Virtually unbreakable JLT PowerTouch™ display on JLT1214P
  • Dual-diversity PIFA WLAN antennas
  • Optional heated display for extreme temperatures on JLT1214N
  • Integrated DC/DC with UPS battery solution

The optimal forklift computer

The JLT1214 Series has been selected by thousands of customers in the warehousing industry around the world. The Series provides the optimal, most hassle-free solution available for forklifts and other applications in the logistics and warehousing space.

Maximized productivity and stable connectivity

Equipped with an Intel Atom® x6413E processor, standard 8GB DDR4 memory (expandable to 32GB), Wi-Fi 6E technology and Windows 11 support, the JLT1214 Series ensures optimal performance, stable connectivity even in busy environments, enhanced security and maximized productivity.

Docking-free solution eliminating downtime

With JLT1214 everything comes integrated in the solution, eliminating the need for external adapters or cradles. By removing unreliable cradle connections, it significantly reduces downtime. Plus, you benefit from a complete solution from a single supplier.

Overcoming the most common point of failure for rugged computers

The JLT1214 Series comes with the virtually unbreakable JLT PowerTouch™ display, thereby overcoming the most common point of failure for rugged computers. It also provides a user-friendly experience even with a gloved hand and is sunlight readable.

Heated display to prevent frost formation in extreme freezer storage

For extreme freezer storage and other sub-zero degree applications, the JLT1214N with heater gives you a heated display to prevent frost formation at low temperatures. The heating element activates automatically when the surrounding temperature approaches 0°C, enabling trouble-free operation in fluctuating temperatures, for example when going in and out of a blast freezer.

Product Highlight

Outstanding value for warehousing and logistics

Smart design with everything built in makes the JLT1214 computers a cost-effective option for logistics applications.

Maximized uptime with JLT:Care service agreement

Complete peace of mind with JLT:Care™, the no-questions-asked service agreement from JLT.

Consistent performance even with unstable voltage

With integrated DC/DC with UPS-battery, JLT1214 computers ensure consistent performance even with unstable voltage.

Product Specifications

Base Unit

Processor:

Intel® E3845

Memory:

4GB DDR3

Display:

12.1” XGA LED 500 NIT

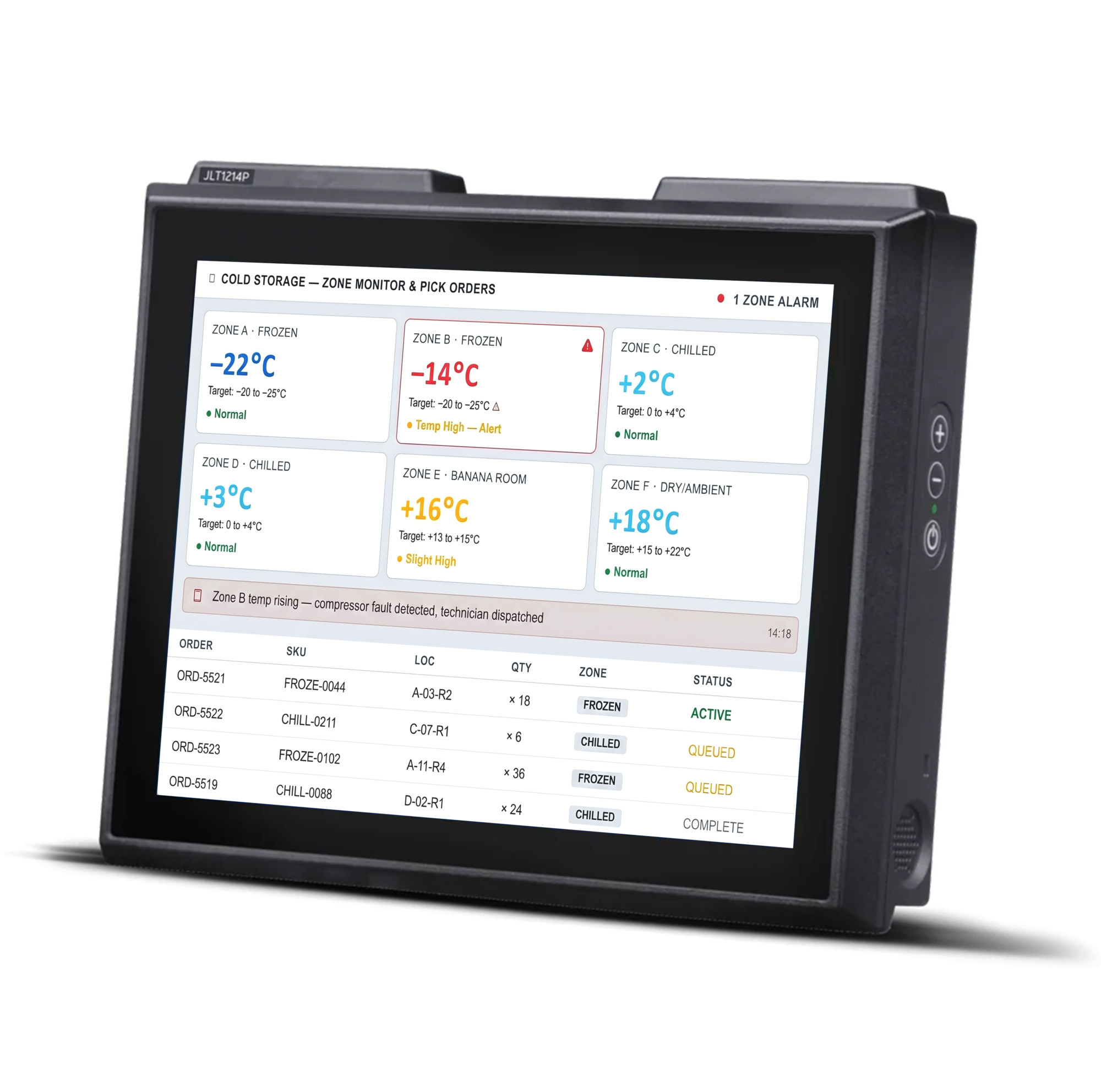

JLT1214P
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass

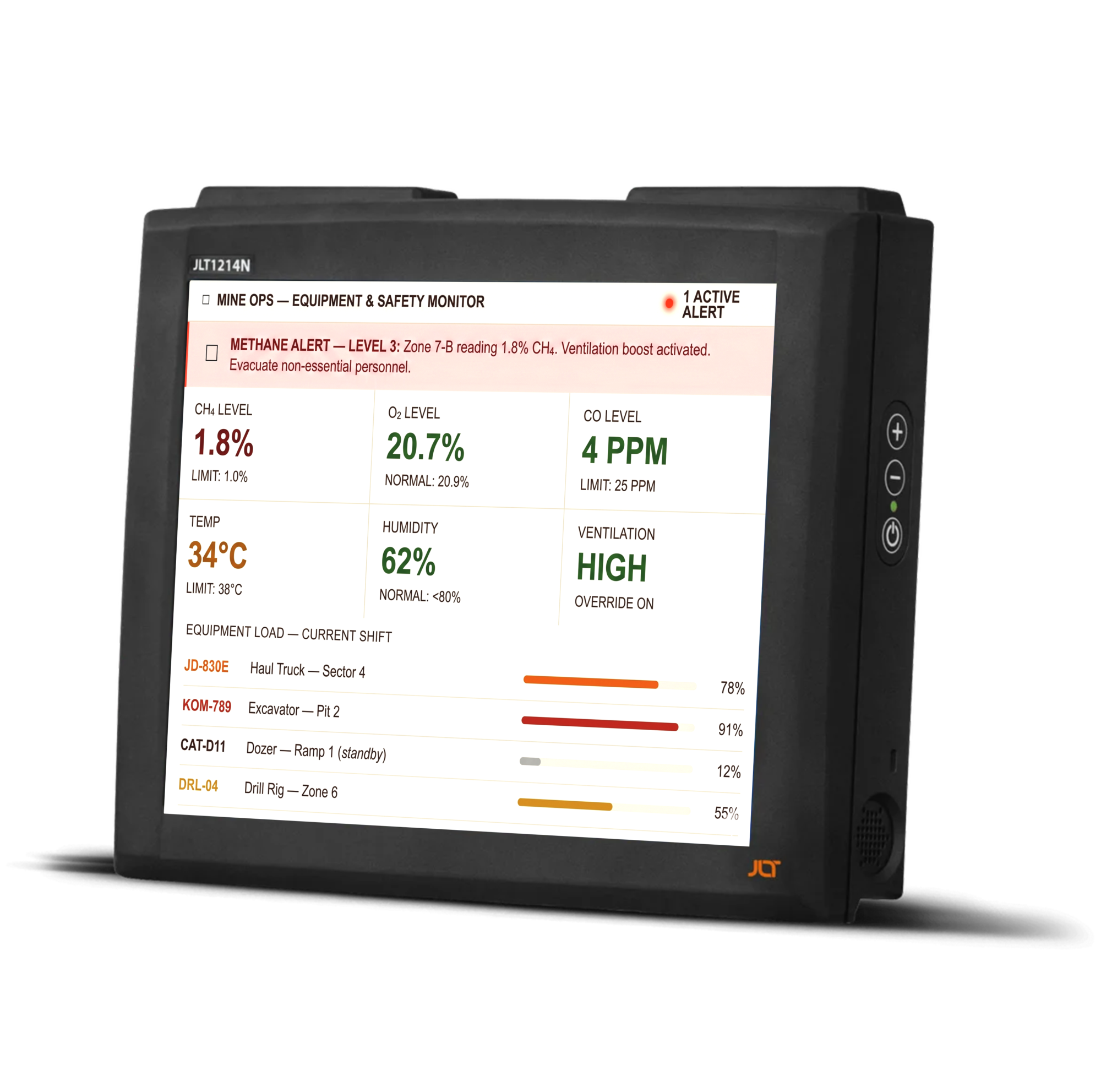

JLT1214N
Resistive 4-wire touch screen

Storage

SATA:

CFast 16GB, 32GB, 64GB, 128GB

RF Options

Radio:

Dualband WLAN 802.11 ac, MU-MIMO supported
Bluetooth v4.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

A-GPS/GLONASS/BEIDOU (optional)

Antennas:

WLAN dual diversity antennas (PIFA)
User configurable external or internal WLAN and Bluetooth antennas

Interfaces

Ports:

4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

Speakers:

Waterproof stereo speakers
HD audio

Buttons:

Power
LED dimming +/-

Power Supply

Input:

18-60 VDC isolated
9-36 VDC unisolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Operating Systems

Windows:

Windows 10 IoT
Windows Embedded Standard 7 Windows 7

Physical Characteristics

Dimensions:

305mm (w) x 240mm (h) x 59mm (d)
12 inch (w) x 9.4 inch (h) x 2.3 inch (d)

Weight:

3.5 kg, 7.7 LB

Environment

Operating temp.:

-30° C to 55° C / -22° F to 131° F

Storage temp.:

-35° C to 75° C / -31° F to 167° F

Humidity:

10–95% RH

Connector Sealing:

Roxtec sealing cable protection (optional)

Dust and water:

IP65 – IEC 60529:2001

Vibration:

5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh

Shock:

30g for 11ms XYZ – IEC 60068-2-27

MIL-SPEC:

810G in applicable areas

Base Unit

Processor:

Intel® E3845

Memory:

4GB DDR3

Display:

12.1” XGA LED 500 NIT

JLT1214P
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass

JLT1214N
Resistive 4-wire touch screen

Interfaces

Ports:

4x USB 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V

Speakers:

Waterproof stereo speakers
HD audio

Buttons:

Power
LED dimming +/-

Storage

SATA:

CFast 16GB, 32GB, 64GB, 128GB

Power Supply

Input:

18-60 VDC isolated
9-36 VDC unisolated

UPS:

Internal battery for graceful shut down at unexpected power outages

Physical Characteristics

Dimensions:

305mm (w) x 240mm (h) x 59mm (d)
12 inch (w) x 9.4 inch (h) x 2.3 inch (d)

Weight:

3.5 kg, 7.7 LB

RF Options

Radio:

Dualband WLAN 802.11 ac, MU-MIMO supported
Bluetooth v4.2
4G (LTE) up to 100 Mbps download speed (optional)

GPS:

A-GPS/GLONASS/BEIDOU (optional)

Antennas:

WLAN dual diversity antennas (PIFA)
User configurable external or internal WLAN and Bluetooth antennas

Operating Systems

Windows:

Windows 10 IoT
Windows Embedded Standard 7 Windows 7

Downloads

PDF

Data sheet JLT1214P and JLT1214N

Download Data Sheet
PDF

Data sheet JLT1214N with heater

Download Data Sheet
PDF

Data Sheet JLT:Care EMEA

Download Data Sheet

Data sheet JLT1214P and JLT1214N

Data sheet JLT1214N with heater

Data Sheet JLT:Care EMEA
